UFH water controls

Underfloor heating water controls have advanced a lot. Our HeatMax™ manifold and mixers have been tried and tested in thousands of homes.

HeatMax™ manifold

HeatMax™ manifold

The HeatMax™ manifold distributes hot water around the underfloor heating zones within your floor. It is supplied with all the ball valves and bleed points for an easy install.

Includes easy to read CrystalClear™ flow gauges to ensure your flow rates are set correctly.

Features:

  • Mounted on soundproofed and galvanised brackets
  • Flat faced 1” male connection thread at each end
  • ¾” connections for eurocones at 50mm spacing
  • Supply rail has 0-4L/min flow meters with shut off valve
  • Return rail has flow valves with shut off valve
Product datasheet
HeatMax™ large area mixer: high temp

HeatMax™ large area mixer: high temp

The HeatMax™ large area mixer provides accurate “on manifold” water temperature control to heating circuits, and connects via ball valves to the manifold.

This is for systems where a high temperature heat source is used, and controls water temperature via the mixing valve to the design temperature required.

Features:

  • Pre-assembled high efficiency pump unit
  • Accurate TMV adjustable from 20°C to 55°C
  • Compact design
  • Nickel plated
  • Connects to HeatMax™ manifolds via valve connections
  • Built-in temperature gauge
  • Built-in non-return valve in flow elbow to allow simple system filling when commissioning
  • Unique swivel joint to allow left or right hand fitting
Product datasheet

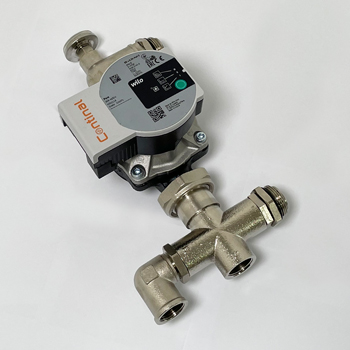

HeatMax™ large area mixer: low temp

HeatMax™ large area mixer: low temp

The HeatMax™ large area mixer is also available without the mixing valve, for use in situations where water temperature controls are not required. This is usually the case where heat pumps are used.

Product datasheet
HeatMax™ small area mixer

HeatMax™ small area mixer

The HeatMax™ small area mixer has been designed for control of flow and water temperature to single rooms or to small areas less than 40m2, where a manifold is not required.

Pre-assembled and tested to ensure that it can be fitted with the minimum of labour, and commissioned immediately once fitted.

Features:

  • Compact design
  • Nickel plated
  • High performance pump
  • Mounted pump control terminal box
  • Pre-assembled and bracketed for simple mounting
  • Built-in isolating valve in flow / return elbow
  • Simple wiring
Product datasheet
